EOS R1 Overview
The Canon EOS R1 is our top-of-the-line full-frame professional camera that is a powerhouse for professionals working in fast action situations, carrying on the legacy of the Canon EOS-1D X Mark II...
EOS R1 Overview
The Canon EOS R1 is our top-of-the-line full-frame professional camera that is a powerhouse for professionals working in fast action situations, carrying on the legacy of the Canon EOS-1D X Mark III digital SLR camera. The 1-series has a long tradition of providing excellent AF performance, speed, durability and reliability, all areas the EOS R1 excels in, but there is so much more including new faster processing, state-of-the-art video features, and networking options that really make this 1-series camera the ONE everyone has been waiting for.
MSRP: $8,599.99
Item Code: 6577C002
EOS R1 Features
Learn more about the features of the EOS R1.
EOS R1
Sensor design
The sensor design on this camara is all new, and all Canon. This new 24.2MP back-illuminated stacked CMOS sensor is the heart of the EOS R1. Balancing the needs of speed and quality, this sensor provides enough pixels for a two-page magazine spread (without enlargement of the file), while also providing incredibly fast sensor read-out speeds, and enhancing low-light performance. The sensor read-out is so fast that it has virtually eliminated Electronic shutter rolling shutter distortion issues. Thanks to this new sensor, and the addition of the new DIGIC Accelerator front-engine processor, the R1 is capable of capturing up to 40 fps of RAW, JPEG, or HEIF (HDR-PQ) images using Electronic Shutter. The DIGIC Accelerator chip also has a useful In-camera Upscaling feature that uses deep learning to double the horizontal and vertical size of a JPEG on your card (leaving the original image alone) in about 10 seconds. That means you can upscale a 24MP image to 96MP right in the camera. The EOS R1 maintains a full Mechanical shutter, and First Curtain Electronic shutter, both capable of continuous shooting at up to 12 fps. Additionally, all continuous shooting speeds with electronic shutter can be user-customized to meet your continuous shooting needs.
DIGIC Accelerator
The DIGIC Accelerator processor is a completely new front-engine processor, developed by Canon to supplement the power of the proven DIGIC X processor. The DIGIC Accelerator handles the processing that makes so many of the new features of this camera possible, allowing the DIGIC X chip to focus solely on image processing, again contributing to incredible speed. The DIGIC Accelerator processes enormous volumes of data directly from the image sensor for actions like AF detection to exposure metering calculations that enable eye-control focus, subject identification and tracking, and even deep learning with features like In-camera Upscaling and Neural Network Noise Reduction.
Time to focus
Autofocus is on a whole new level with the EOS R1. New subject tracking allows you to maintain focus on a moving subject even when they are obscured briefly while shooting. And, for even faster positioning of your active AF Area, the R1 adds Canon’s Eye Control AF — even more advanced than the Eye Control in the EOS R3 camera. Once you calibrate the viewfinder to your eye, just look where you want to focus, and the AF Area will move there when you press the AF activation button. This new system is even robust enough for many users to work when the photographer is wearing glasses. The R1 features another first for Canon — the CMOS sensor itself now has cross-type Dual Pixel AF on its imaging sensor, to give a more positive focus response to scenes that have a lot of linear detail like window blinds or planks on a boardwalk.
Action priority
According to movement and other factors, it simplifies finding and keeping an active AF Area upon a subject about to perform a critical action, and it can really help getting great sports pictures! This feature works with three sports at the moment, soccer, volleyball, and basketball. With Action priority the camera can recognize and track specific people, and takes into account ball tracking, movement evaluation, and even multiple subjects in a scene at the same time, to help ensure you get the action shot you want when everything is moving so fast in front of your eyes. This Action Priority mode takes on even more power when you pair it with pre-continuous shooting. When enabled, pressing the shutter button halfway will start the pre-recording process, when you fully depress the shutter, the previous 1/2 -second of images will be written to the memory card (so up to 20 if the R1 is shooting at 40 fps), and will continue capturing images until you release the shutter button.

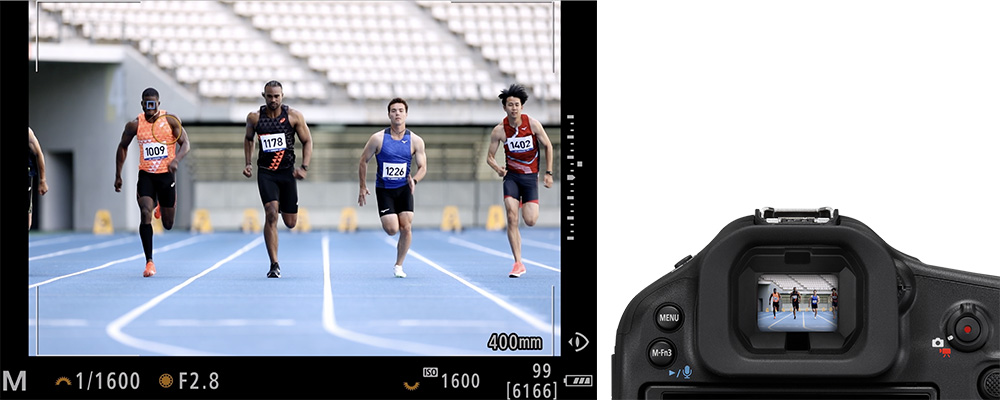

Our best EVF
The new Electronic viewfinder is now Canon’s best ever, featuring a 9.44 million dot resolution in an OLED display, a 0.9x magnification for a large view, and its maximum brightness is the highest yet in an EOS R-Series camera. Additionally, some of the EVF optics inside the body are sealed in an airtight structure, making it less likely that the viewfinder will fog up.
If you are coming from a DSLR , using this EVF will feel very natural to you, but you will have access to much more information than you ever could have had in a DSLR. And, low-light viewing is a big improvement over previous optical viewfinders, as well.

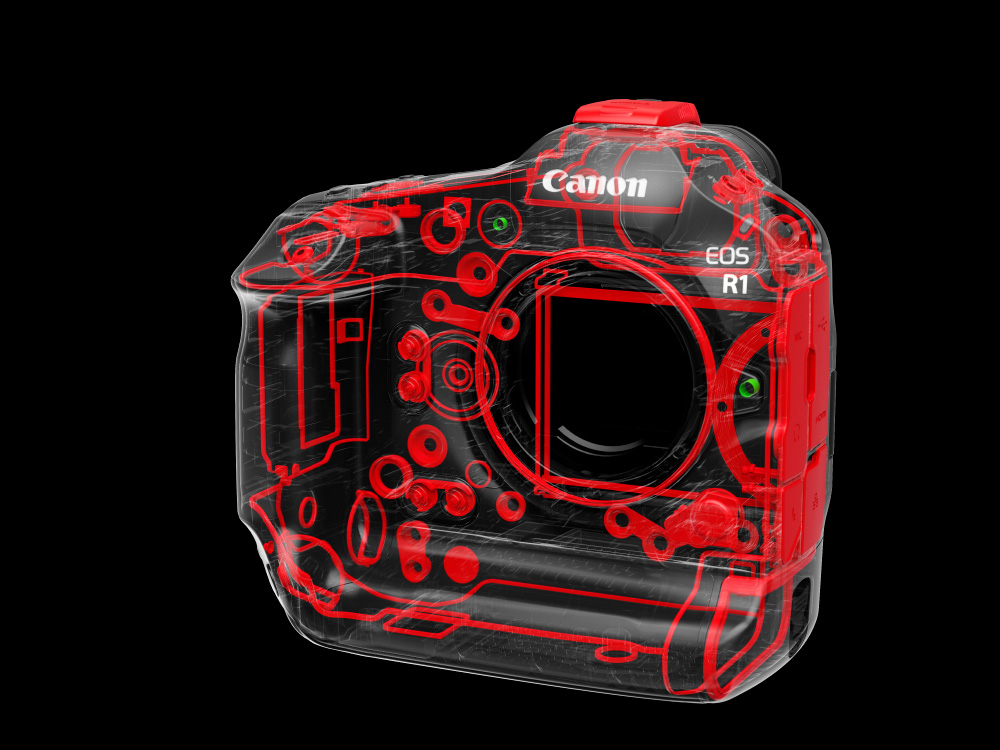

Reliability
Like every 1-series camera before it, the EOS R1 features robust dust- and weather-resistance and the camera also features a magnesium alloy exterior body. Reliability means more than just weather resistance at Canon, every component of the R1 is put through more rigorous testing than any of our other models — from button presses, to dial turns, this camera is ready for real life photo and video capture and all of what that entails.

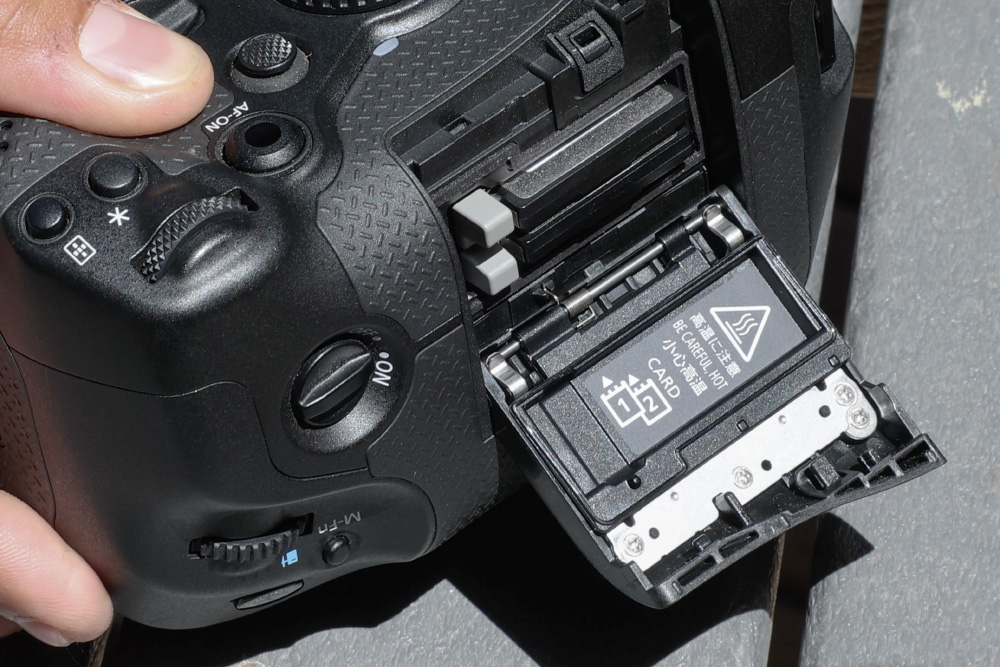

Dual Card Slots for CFexpress** Type B
Dual slots for CFexpress cards give you the speed and storage you need for demanding projects. This also allows for cool abilities, like the ability to record smaller-sized proxy movies to slot 2 while simultaneously capturing high-res footage on the main card in slot 1. Using the Dual Shooting (still & movie) setting, the dual slots also allow you to capture 17MP JPEG still images to slot 2, while recording 30 fps Full HD video on the main card with no interruption to the video.
**The camera can accept CFexpress cards over 2TB in capacity. With these cards, the camera can write to the first 2TB (only) of total card capacity.
Video where you need it
The EOS R1 also provides versatile cinema integration, with a range of high-performance video features, including 6K, RAW recording in-camera at up to 60 frames per second, 4K MP4 recording up to 120 frames per second (with audio), and 2K or Full HD recording to 240 frames per second. The R1 even has a built-in tally lamp, and is capable of recording 4-channel audio.
Improved Image Stabilization*1*2
The EOS R1 has three stabilization methods (in-body, optical, and independently-activated movie digital IS) for spectacular stabilization performance, especially when recording video, where it can help suppress blur in the peripheral area. IS (Coordinated Control) can deliver up to 8.5 stops at center and 7.5 stops at the periphery.*3*4 The in-body image stabilization is even more powerful when paired with a compatible RF or RF-S lens with image stabilization for coordinated IS, where the lens and camera work together to maximize the stabilization effect.
*1: For compatible lenses, refer to Supplemental Information for EOS R1 on the website cam.start.canon.
*2 When using Movie digital IS, the field of view is reduced.
*3: Based on the CIPA 2024 standard. Yaw/Pitch/Roll image stabilization performance, when using RF24-105mm F2.8 L IS USM Z (f=105mm)
*4: For supported lenses, please see "Supplemental Information" for EOS R1 on the website "cam.start.canon".
EOS R1 Specifications
See complete specifications for the EOS R1.
EOS R1
Type
| Type | Digital interchangeable lens mirrorless camera |
| Image Processor | DIGIC X (with DIGIC Accelerator co-processor) |
| Recording Media | (Two) CFexpress Type B card slots
|
| Compatible Lenses | Canon RF lens group (including RF-S lenses) When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses) |
| Lens Mount | Canon RF mount |
Image Sensor
| Type | Canon designed full-frame back-illuminated stacked CMOS sensor |
| Effective Pixels | Approx. 24.2 megapixels |
| Sensor Size | Approx. 36.0 x 24.0 mm |
| Pixel Size | Approx. 6.00 μm square |
| Total Pixels | Approx. 26.7 megapixels |
| Aspect Ratio | 3:2 (Horizontal: Vertical) |
| Colour Filter System | RGB primary colour filters |
| Low Pass Filter | Installed in front of the image sensor, non-detachable |
| Dust Deletion Feature | (1) Self Cleaning Sensor Unit
(2) Dust Delete Data acquisition and appending
(3) Manual cleaning (by hand) |
Recording System
| Recording Format | Compliant to Design rule for Camera File system 2.0 and Exif 2.31*. *Supports time difference information in Exif 2.31. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Format | RAW: RAW / C-RAW JPEG / HEIF: L / M / S1 / S2 Movies:
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| File Size |
* 1: Number of shots available and maximum burst apply to 325 GB cards conforming to Canon testing standards. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| File Numbering | The following file numbers can be set: a. Continuous numbering
b. Auto reset
2. Manual reset | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAW + JPEG / HEIF Simultaneous Recording | Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Colour Space | Selectable between sRGB and Adobe RGB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Picture Style | (1) Auto
|
White Balance
| Settings | (1) Auto (Ambience priority/White priority)
*1: Effective also in twilight and sunset. |
| Auto White Balance | Option between ambience priority and white priority settings, using SET button |
| White Balance Shift | Blue/amber bias: ±9 levels
WB Bracketing available, up to ±3 levels Blue/amber or magenta/green, via Quick Control Dial |
Viewfinder
| Type | OLED color electronic viewfinder; 0.5-inch, approx. 9.44 million dots |
| Coverage | Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 25mm eyepoint). |
| Magnification / Angle of View | Approx. 0.90x / Approx. 41.4 degrees (with 50mm lens at infinity, -1 m-1) |
| Eye Point | Approx. 25mm (at -1 m-1 from the eyepiece lens end) |
| Dioptric Adjustment Range | Approx. -4.0 to + 2.0 m-1 (dpt)* *: Dioptric adjustment lock mechanism |
| Viewfinder Information | (1) Maximum burst |
Autofocus
| Focus Method | Dual Pixel CMOS AF |
| Cross-type AF | Supported
* Dual Pixel CMOS AF has been vertical-line detection only with previous models, but the EOS R1 can perform not only vertical-line detection but also horizontal-line detection by rotating the pupil division direction of the Gb pixels of the |
| Number of AF zones available for Automatic Selection | AF area: Horizontal: Approx. 100% x Vertical: Approx. 100% Stills: Max. 1053 zones (39 x 27) Movies: Max. 975 zones (39 x25) |
| Selectable Positions for AF Point | AF area: Horizontal: Approx. 90% x Vertical: Approx. 100% Stills: Max. 4897 positions (83 x 59) Movies: Max 4067 positions (83 x 49) |
| Focusing brightness range (still photo shooting) | EV –7.5 to 21 (with an f/1.2 lens,* center AF point, One-Shot AF at room temperature, and ISO 100) * Except RF lenses with a Defocus Smoothing (DS) coating. |
| Focusing brightness range (movie recording) | 4K30p: EV – 5.5 to 21 Full HD30p: EV – 5.5 to 21 (with an f/1.2 lens,* center AF point, One-Shot AF at room temperature, ISO 100, and * Except RF lenses with a Defocus Smoothing (DS) coating. |
| Available AF Areas |
|
| Available Subject Detection |
* Certain types of animals or vehicles may not be detected, depending on shape and appearance |
| Eye Detection | Auto:
Right Eye:
Left Eye:
|
Exposure Control
| Metering Modes | Real-time metering from CMOS image sensor (6144 [96x64] metering zones) (1) Evaluative metering (AF point-linked) | |||||||||||||||||||||
| Metering Range | EV -3 – 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting) | |||||||||||||||||||||
| Exposure Modes |
| |||||||||||||||||||||
| ISO Speed Range | Manually Set
* When set to [Highlight tone priority], the available manual setting range is ISO 200–102400.
ISO Auto range settings in still photo shooting
ISO Auto details in still photo shooting
*1: ISO 200 when set to [Highlight tone priority: Enable/Enhanced]. | |||||||||||||||||||||
| Exposure Compensation | User-set: ±3 stops in 1/3- or 1/2-stop increments AEB: ±3 stops in 1/3- or 1/2-stop increments | |||||||||||||||||||||
| AE Lock | (1) Auto AE lock
(2) User-set AE lock
| |||||||||||||||||||||
Shutter
| Type | Electronically controlled focal-plane shutter * Cannot be used in conjunction with the following functions: flash photography, HDR shooting, multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High]. |
| Shutter Speeds | Mechanical / 1st-curtain Electronic shutter: 1/8000th sec – 30 seconds, in 1/3 or ½-step increments Electronic shutter: 1/64000th sec – 30 seconds, in 1/3 or ½-step increments (1/16,000th possible, if user-set in Tv or M shooting modes) |
| X-sync Speed | Mechanical Shutter: 1/200 sec. Elec. 1st-curtain: 1/320 sec. |
| Shutter Release | Soft-touch electromagnetic release |
| Self Timer | 10-sec. delay, 2-sec. delay, Continuous |
Image Stabilization (IS mode)
| Still Photo IS | In-body IS operation can be selected when using a non-IS lens.
Coordinated IS when used with Canon RF or RF-S lenses having optical Image Stabilization |
External Speedlite
| Accessory Shoe | Canon Multi-function accessory shoe
|
| E-TTL balance | Ambience priority, standard, flash priority |
| Flash Exposure Compensation | ±3 stops in 1/3- or 1/2-stop increments |
| Continuous flash control | E-TTL each shot / E-TTL 1st shot |

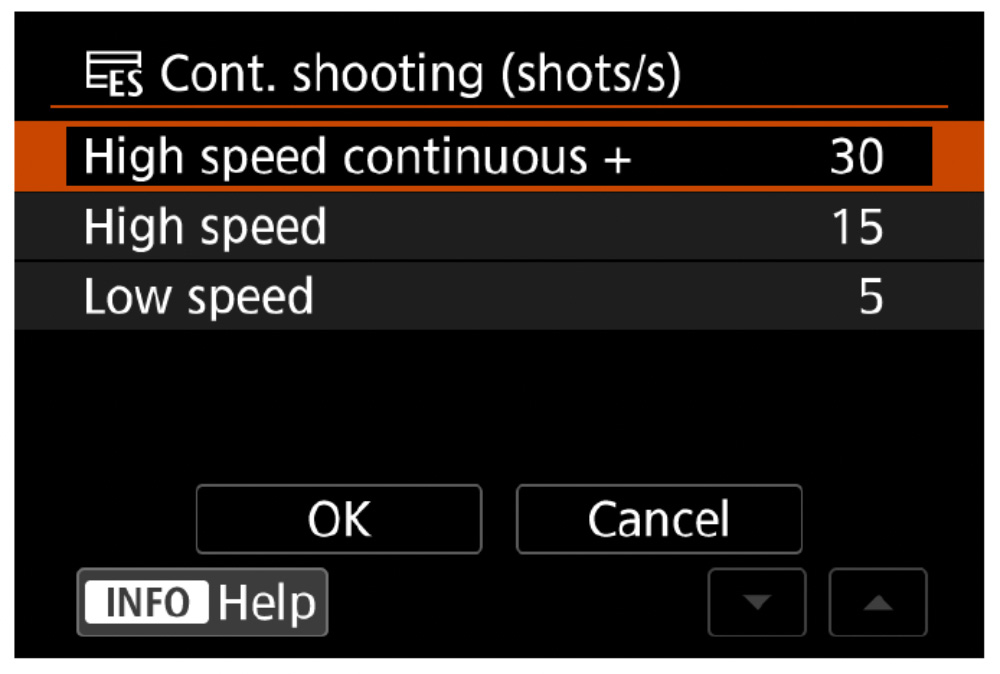

Drive System
| Drive Modes and Continuous Shooting Speed |
1. Continuous shooting speed is lower under certain shooting and measurement conditions: shutter speed, aperture value subject conditions, brightness, type of lens, timing when internal memory becomes full (temporarily disables shooting) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
HDR Shooting
| HDR Shooting (HDR PQ) | Disable / Enable | ||||||||
| Still Photo HDR PQ |
| ||||||||
| Movie HDR PQ |
| ||||||||
| Continuous HDR Shooting (still images) | 1 shot only / Every shot |
Video Shooting
| Shooting Times |
* Longest time available per recording. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| File Format | Normal Movies
* Recording in AAC when [Audio compression] (C.Fn4) is set to [Enable] or Linear PCM when set to [Disable].
* When the main recording format is RAW, the format is LPCM / 24 bit / 4CH.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Estimated Recording time, Movie Bit Rate and File Size | RAW, 4K-DCI Fine / 4K-UHD Fine
1. Requires CFexpress 2.0 Type-B [400MB/sec. or more] | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Estimated Recording Time, Continued. | H.265/HEVC (Canon Log: On or HDR PQ: On)
1. Requires CFexpress 2.0 Type-B [400MB/sec. or more] | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Performance Requirements | 4K-DCI Normal / 4K-UHD Normal
* Video bit rate indicates video only; audio and metadata are not included. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video AF | Dual Pixel CMOS AF; Movie Servo AF available in AF Menu | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Exposure Compensation | ±3 stops in 1/3- or 1/2-stop increments | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Time Code | Yes (Count up, Start time setting, Movie recording count, Movie play count, HDMI time code on/off, HDMI rec. command on/off, Drop frame enable/disable) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Movie Pre-recording (On/Off) | 3 or 5 seconds; user-selectable | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Time-lapse Movie Setting | Interval 2 sec – 99:59:59; Number of frames 2–3,600; Movie recording size 4K/Full HD; Auto exposure fixed @ first frame/auto for each frame; Beep per frame recorded (volume setting 0/silent – 5) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Time-lapse Playback Frame Rate | 29.97 (set to NTSC); 25.00fps (set to PAL) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LCD Screen
| Type | TFT color, liquid-crystal monitor |
| Monitor Size | 3.2-inch (screen aspect ratio of 3:2) |
| Dots | Approx. 2.1 million dots |
| Coverage | Approx. 100% vertically/horizontally |
| Brightness Control | Manually adjustable to one of seven brightness levels |
| Touch-screen Operation | Supported for AF Point selection; Touch AF; Touch Shutter; Menu selection; Quick Control Menu; Magnified view |
| Coating | Clear View LCD II
|
| Interface Languages | 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese) |
Playback
| Display Format |
| ||||||||||||||||||||||||||||||
| Highlight Alert | White areas without image data blink in single-image display. | ||||||||||||||||||||||||||||||
| Histogram | Brightness / RGB | ||||||||||||||||||||||||||||||
Quick Control Function
| Function | The Quick Control screen can be accessed by pressing the Quick Control button during shooting, recording, or playback. |
| Quick Control Screen | The following settings are available for the [Quick Control screen] during movie recording.
|
Image Protection and Erase
| Protection | (1) Single image (select image)
(5) All found images (only during image search) |
| Erase | Except protected images |
Direct Printing
| Compatible Printers | Direct printing from camera not supported |
DPOF: Digital Print Order Format
| DPOF | Compliant to DPOF Version 1.1 |
Wi-Fi®
| Standards Compliance | IEEE 802.11b/g/n/a/ac/ax | ||||||||||||||||||||||||||||||||||||||||||||||||
| Transmission Method | DS-SS modulation (IEEE 802.11b) OFDM modulation (IEEE 802.11g/n/a/ac/ax) OFDMA modulation (IEEE 802.11ax) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Transition Frequency (Central Frequency) | 2.4 GHz band Frequency: 2412 to 2462 MHz Channels: 1 to 11 channels
5.0 GHz band Frequency: 5180 to 5825 MHz Channels: 36 to 165 channels
6.0 GHz band Frequency: 5955 to 7095 MHz Channels: 1 to 229 channels | ||||||||||||||||||||||||||||||||||||||||||||||||
| Connection Method | (1) Camera access point mode | ||||||||||||||||||||||||||||||||||||||||||||||||
| Security | 2.4 GHz band / 5 GHz ban
6 GHz band
| ||||||||||||||||||||||||||||||||||||||||||||||||
| Communication with a Smartphone |
| ||||||||||||||||||||||||||||||||||||||||||||||||
| Remote Operation Using EOS Utility | The camera can be controlled via Wi-Fi® or USB, with Canon EOS Utility software installed in a compatible Mac or Windows computer. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Print from Wi-Fi® Printers | Not supported. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Send Images to a Web Service | image.canon: Video files (MP4) and JPEG, HEIF, RAW or C-RAW still images can be uploaded to image.canon servers. From image.canon, images can be sent to specific social media and 3rd-party cloud image services. | ||||||||||||||||||||||||||||||||||||||||||||||||
Bluetooth®
| Standards Compliance | Bluetooth Specification Version 5.3 compliant (Bluetooth Low Energy technology) |
| Transmission Method | GFSK modulation |
| Bluetooth Pairing | Smartphone — up to 25 devices; BR-E1 remote controller — 1 unit |
Customization
| Available Functions | Dial direction during Tv/Av; Control ring rotation direction; Customize buttons; Customize dials |
Video Calls / Streaming
| USB Video Class (UVC) | Available * The camera is accessible to software (such as Zoom™, MS Teams™, Skype™, etc.) on a computer once connected via USB. | ||||
| Custom Controls | Customizable Buttons
| ||||
| Customizable Dials |
| ||||
| My Menu Registration |
|
Interface
| USB Terminal | Equivalent to SuperSpeed Plus USB (USB 3.2 Gen 2)
|
| HDMI Out Terminal | HDMI output terminal (Type A)
|
| Clean HDMI Output | Provided |
| Microphone terminal | 3.5mm diameter stereo mini jack |
| Headphone terminal | Compatible with 3.5mm diameter stereo mini-plug |
Power Source
| Battery | LP-E19 * LP-E4N / LP-E4 cannot be used. Unauthenticated batteries can also be used, but safety cannot be guaranteed. |
| Optional Battery Grip | Not supported |
| Battery Check | Automatic battery check with 6-level display when the power switch is turned ON. Displayed in 6 levels in viewfinder, and on LCD screen.
|
| Start-up Time | Approx. 0.4 sec.
|
Dimensions and Weight
| Dimensions (W x H x D) | Approx. 6.2 x 5.89 x 3.44 in. / 157.6 x 149.5 x 87.3mm
|
| Weight | Approx. 2.5 lbs. / 1115g (including battery and memory card) Approx. 2.0 lbs. / 920g (body only; without battery, card or body cap) |
Operating Environment
| Working Temperature Range | 32–113°F / 0–45°C |
| Working Humidity Range | 85% or less |
What's in the Box
- EOS R1
- Eyecup ER-I
- Shoe cover ER-SC3
- Camera Cover R-F-5
- Strap ER-L1
What's in the Box - EOS R1
- EOS R1
- Eyecup ER-I
- Shoe cover ER-SC3
- Camera Cover R-F-5
- Strap ER-L1
- Battery Charger LC-E19
- Battery Pack LP-E19
- Battery Pack Cover
- Interface Cable IFC-100U
